HOME GUARDIAN
Sanitizing and reminder device
Team: Hsuan Lee (Individual)
Brief: Investigate the use of interactive products that will enhance daily living amid severe crises like the Covid-19 pandemic. Using Arduino prototyping, create a product with integrated interactivity.
Solution: The Home guardian is a reminder device for communal living that UV sanitizes regularly handled items such as keys, wallets, and masks. Complete with an intuitive checklist system, the Home guardian helps instill good hygiene practices and reduces the spread of Covid-19.
|Process|
Conceptual Design, Design Thinking, Prototyping
|Technology|
Arduino sensors, 3D printing, Keyshot Renders

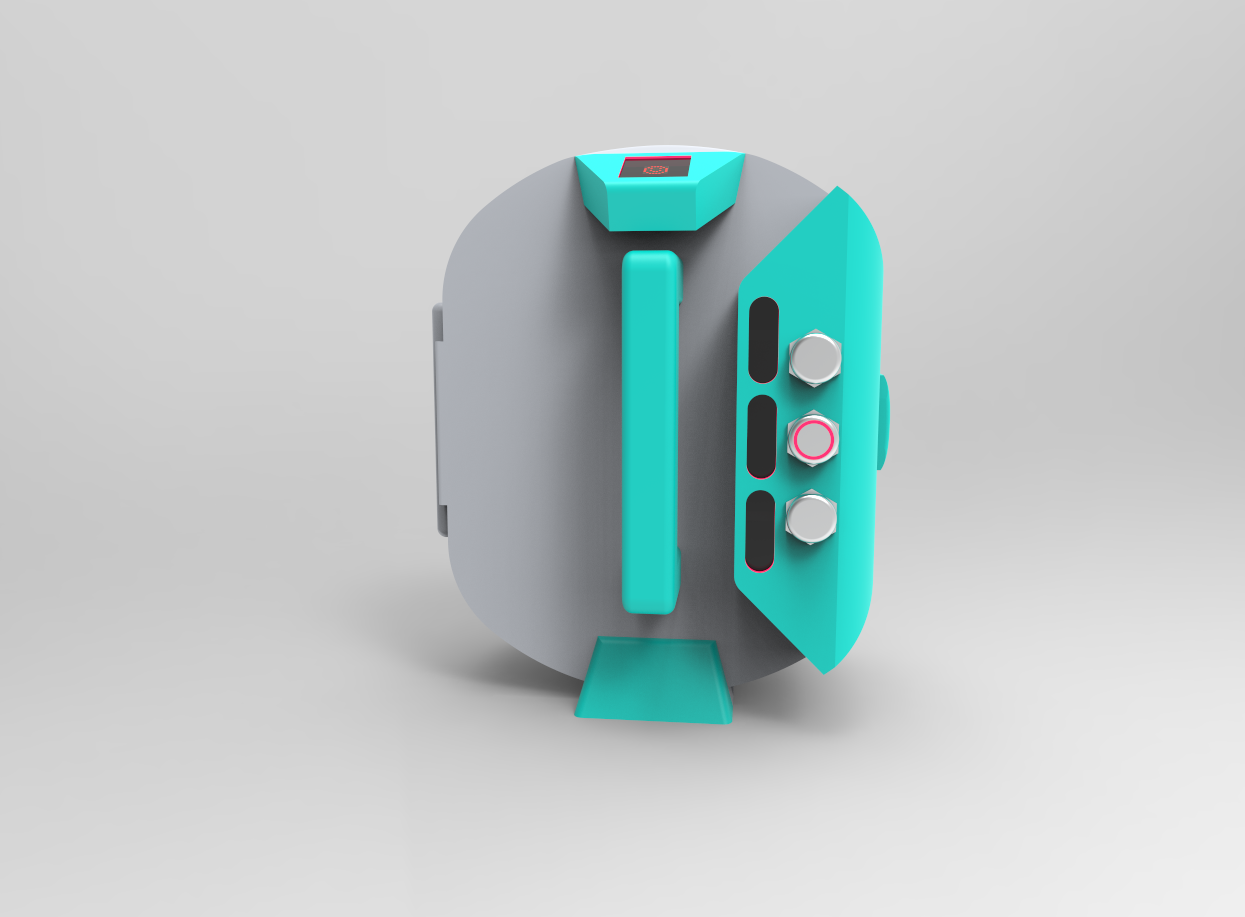

Sleek and eyecatching
Designed to be safe and durable, Home Guardians clean and distinctive design allows it to blend in and stand out in any household.
Secure and safe
Equipped with UV sanitisation and RFID verification capabilities. Home guardian ensures that the objects stored within it are clean and secure every day.

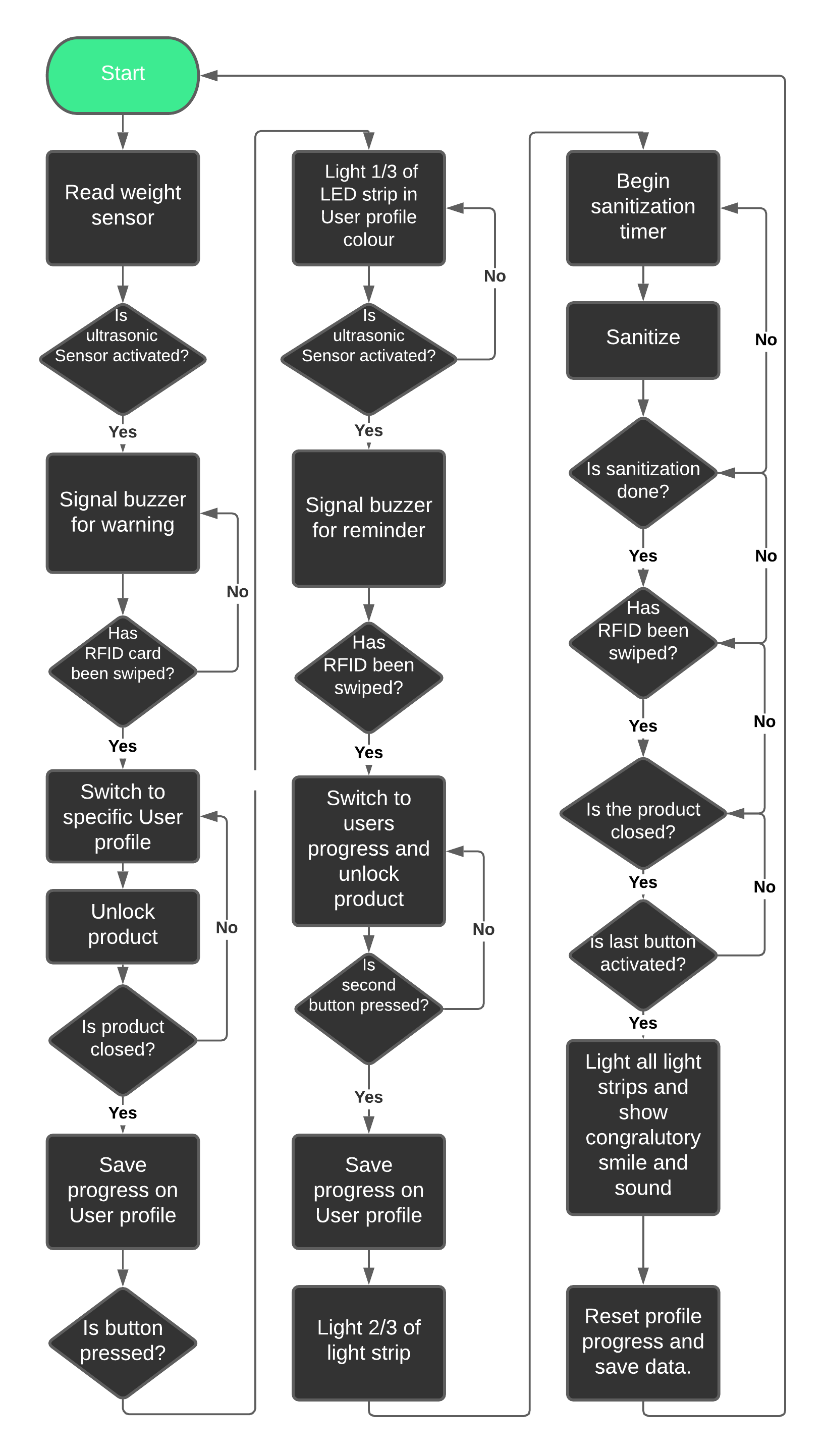

Arduino flow chart
This flow chart was made to explain the thinking process of the coding and highlights the sensors that are incorporated to produce the working prototype model.
Design visualisation
Inspiration moodboard

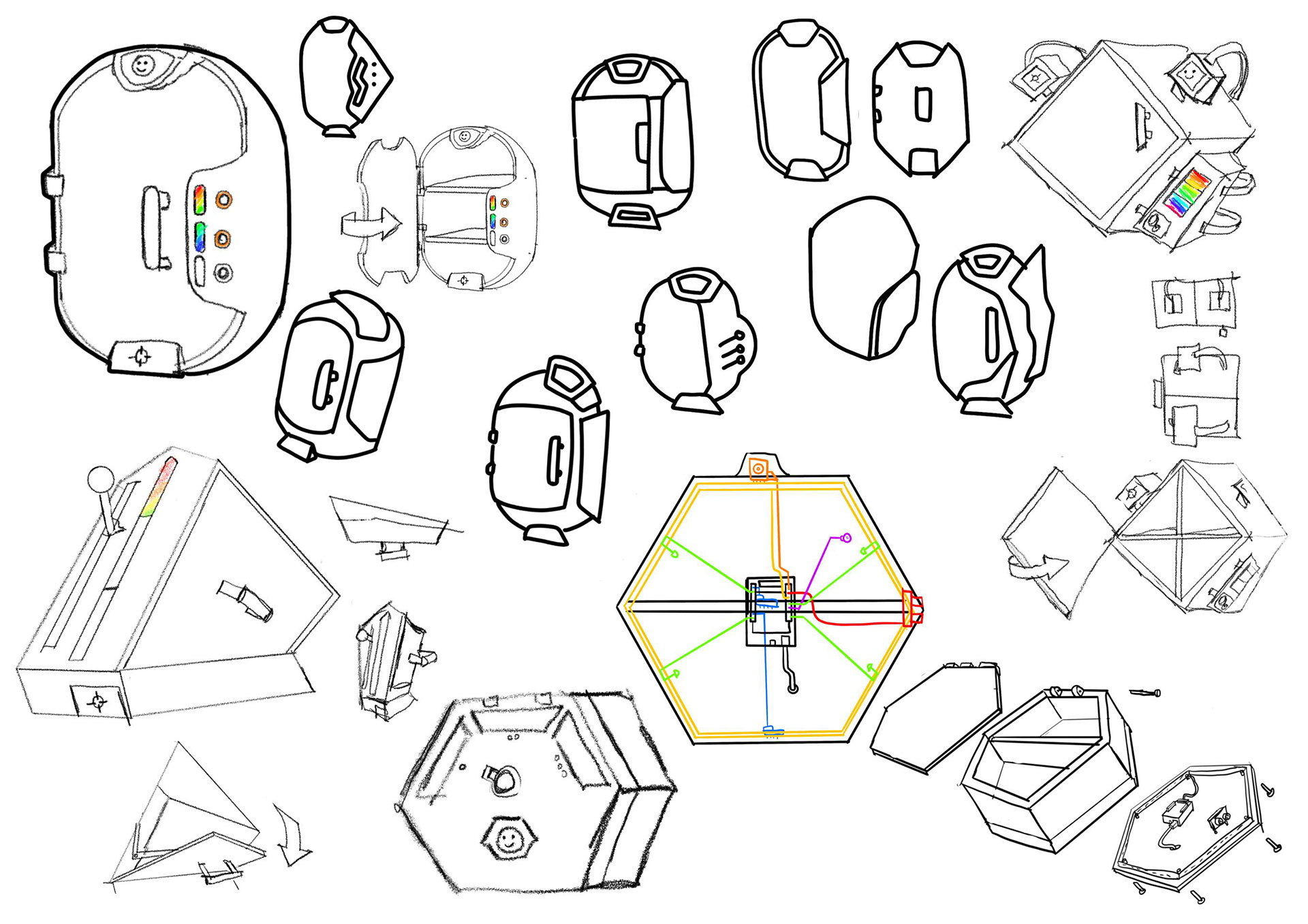

Sketching ideation
Picking colours, material and finish
Fusion 360 modelling

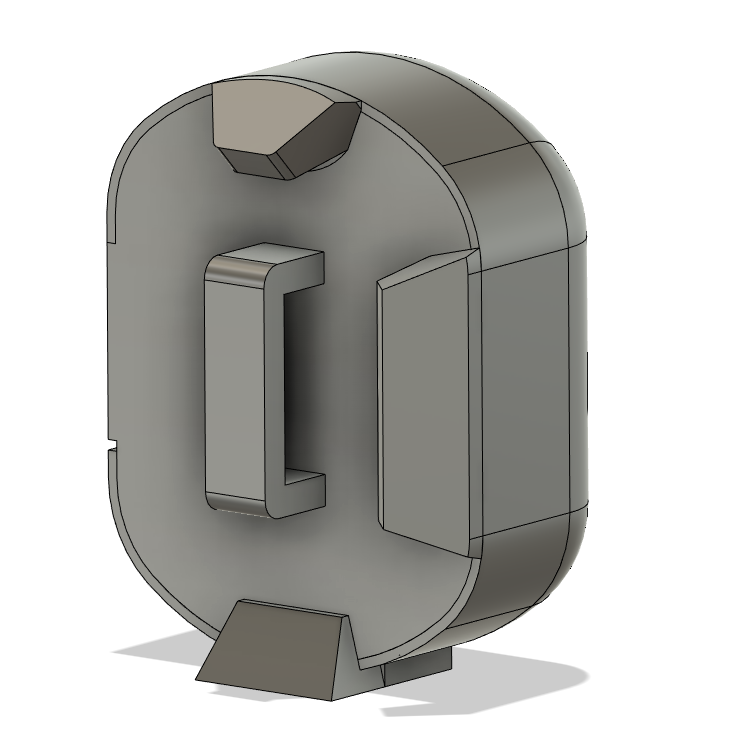

Block modelling

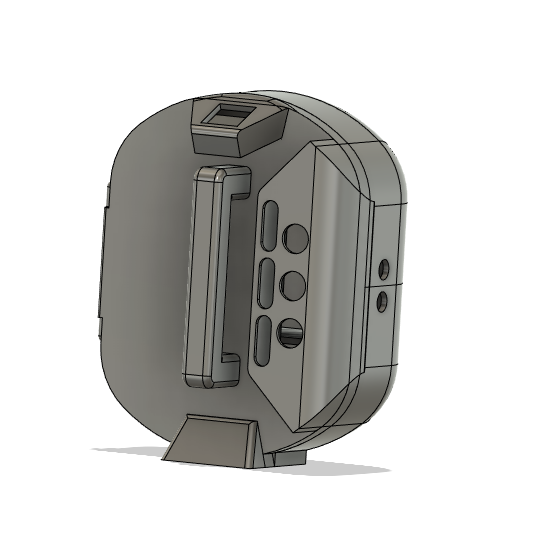

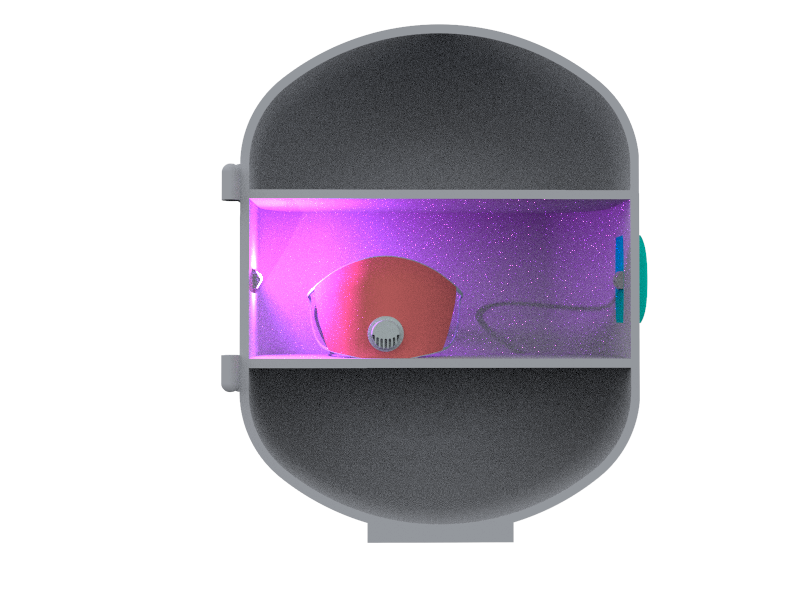

Final model

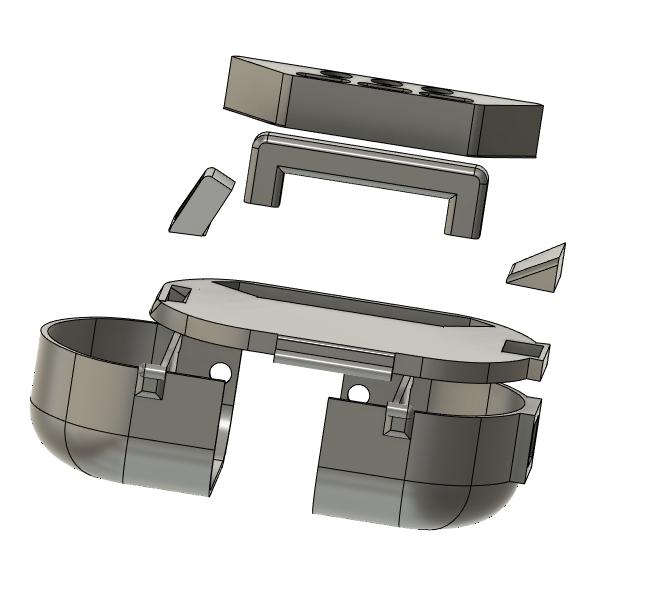

3D printer ready model

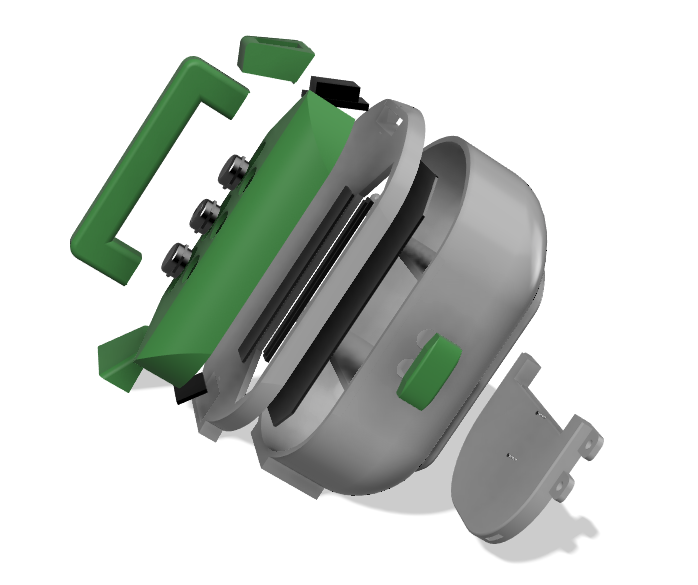

Exploded view
Prototyping

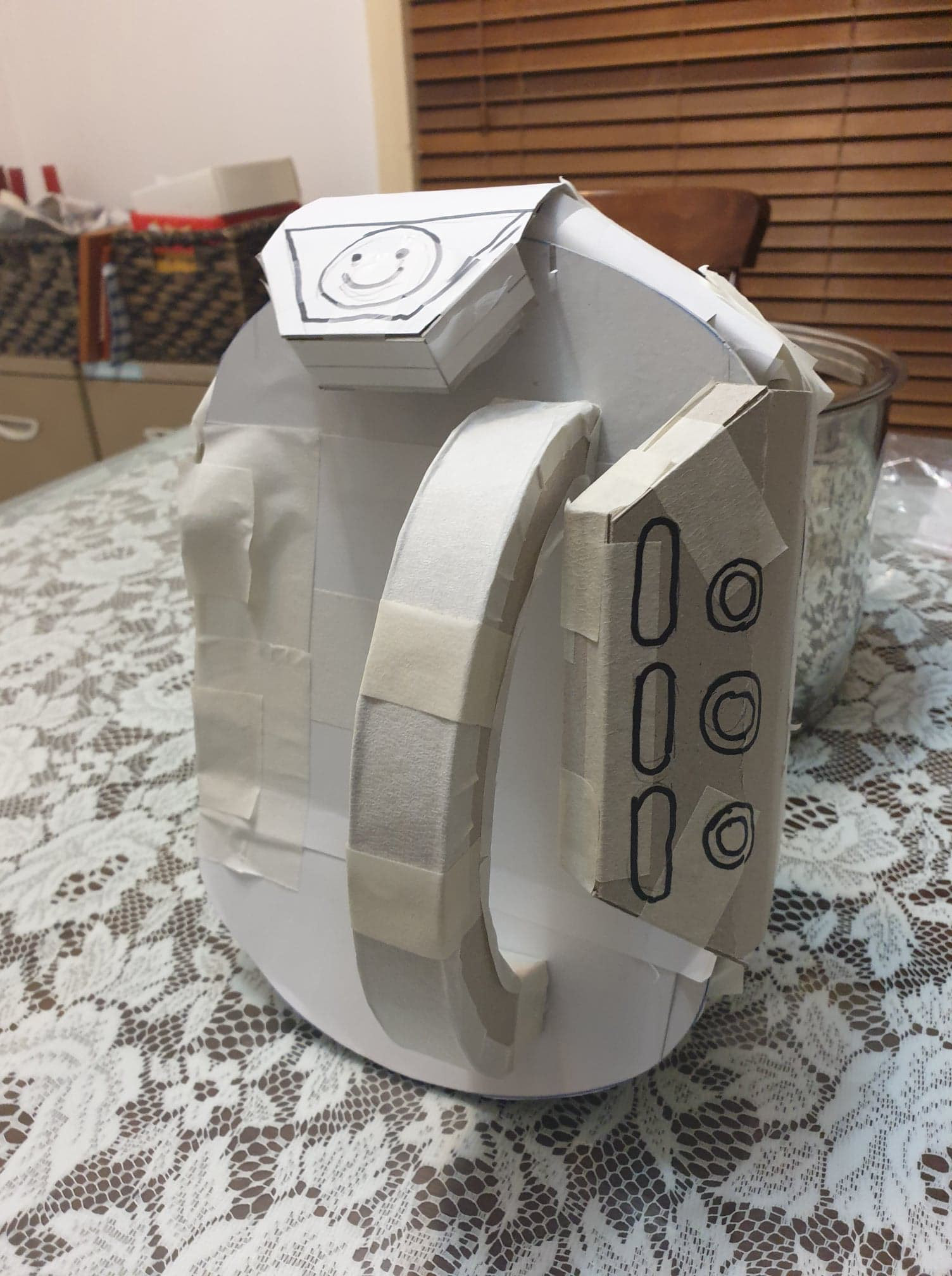

Low-fidelity protoype

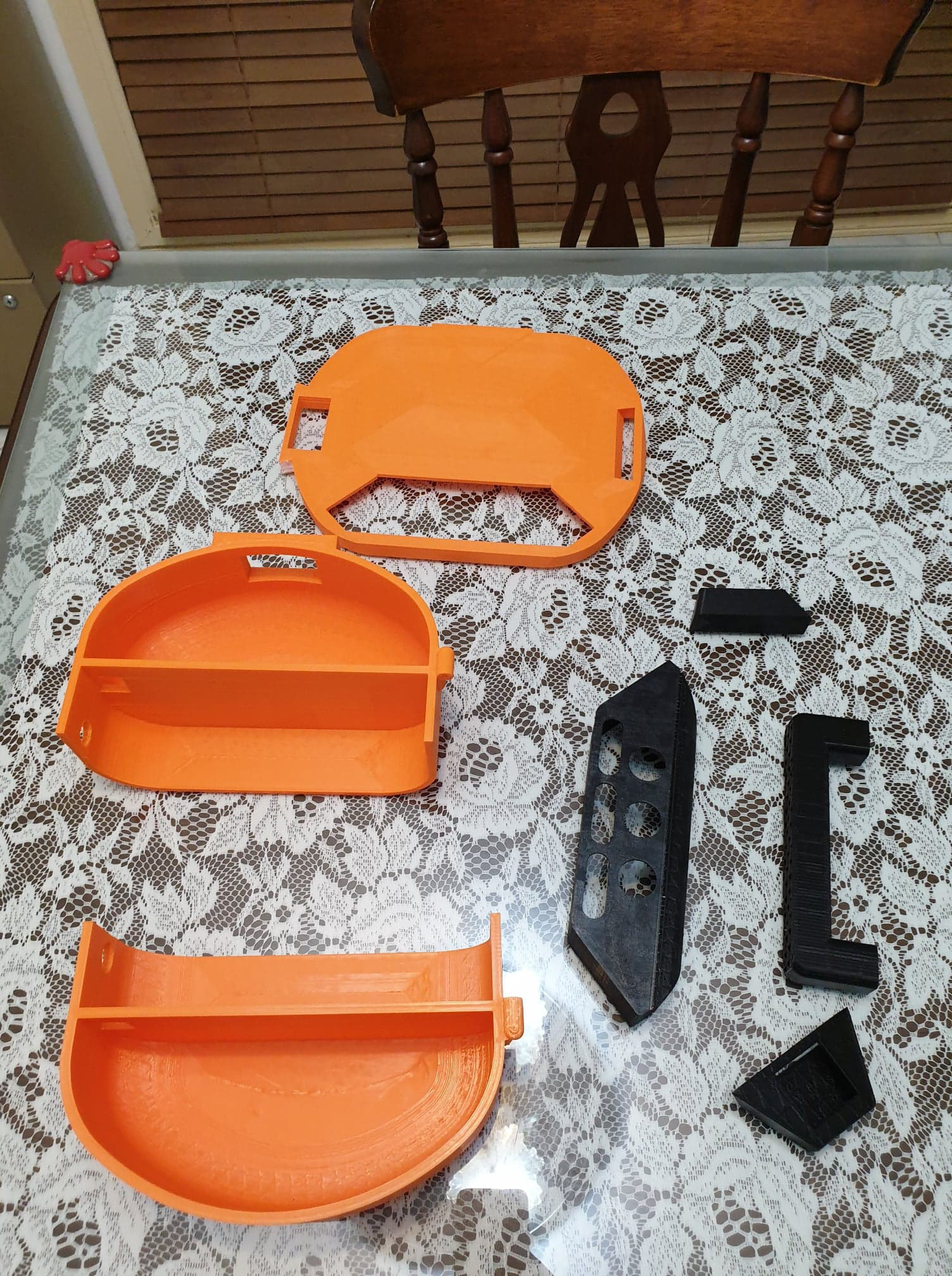

3D printed model

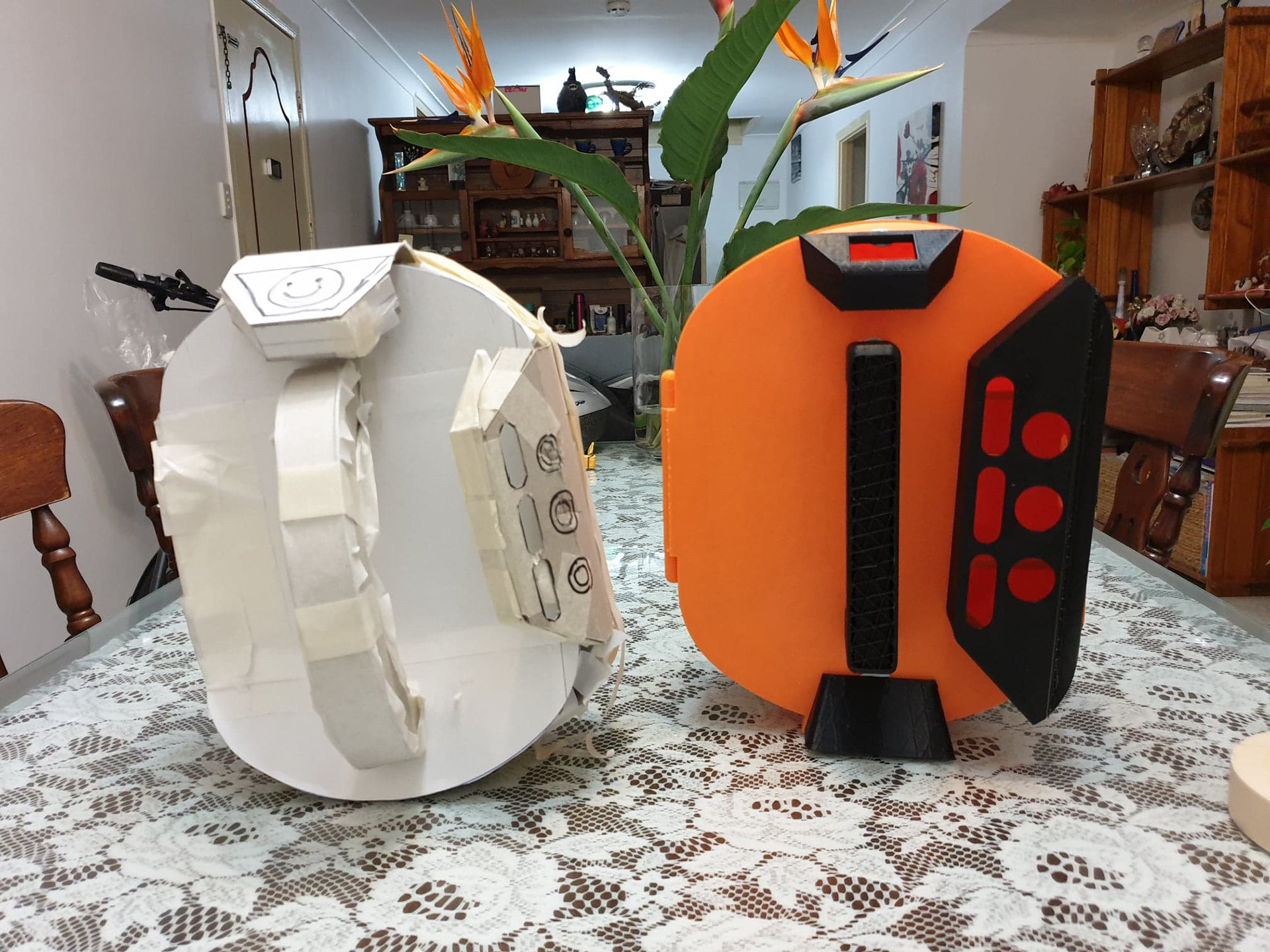

Prototyping comparison

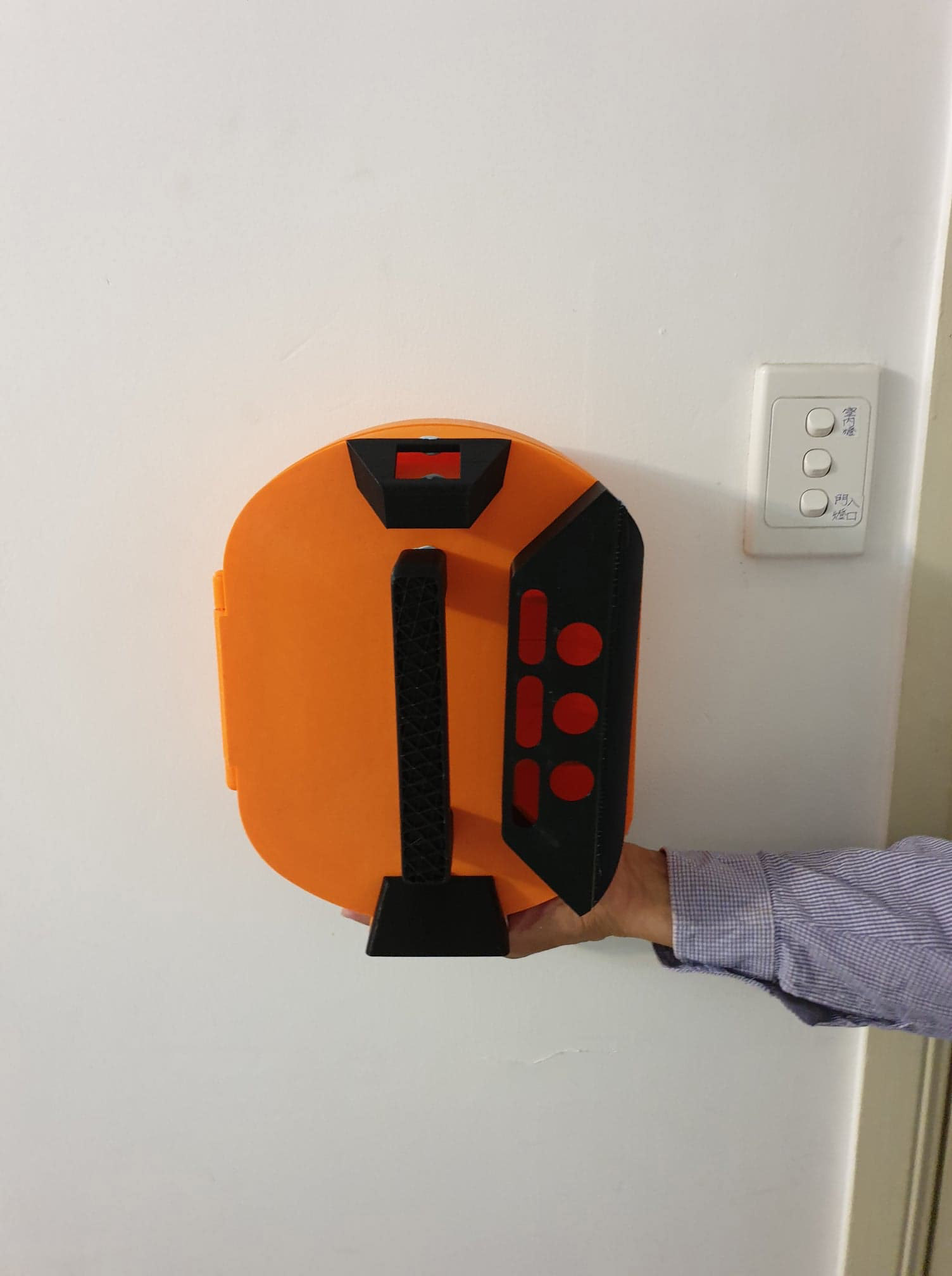

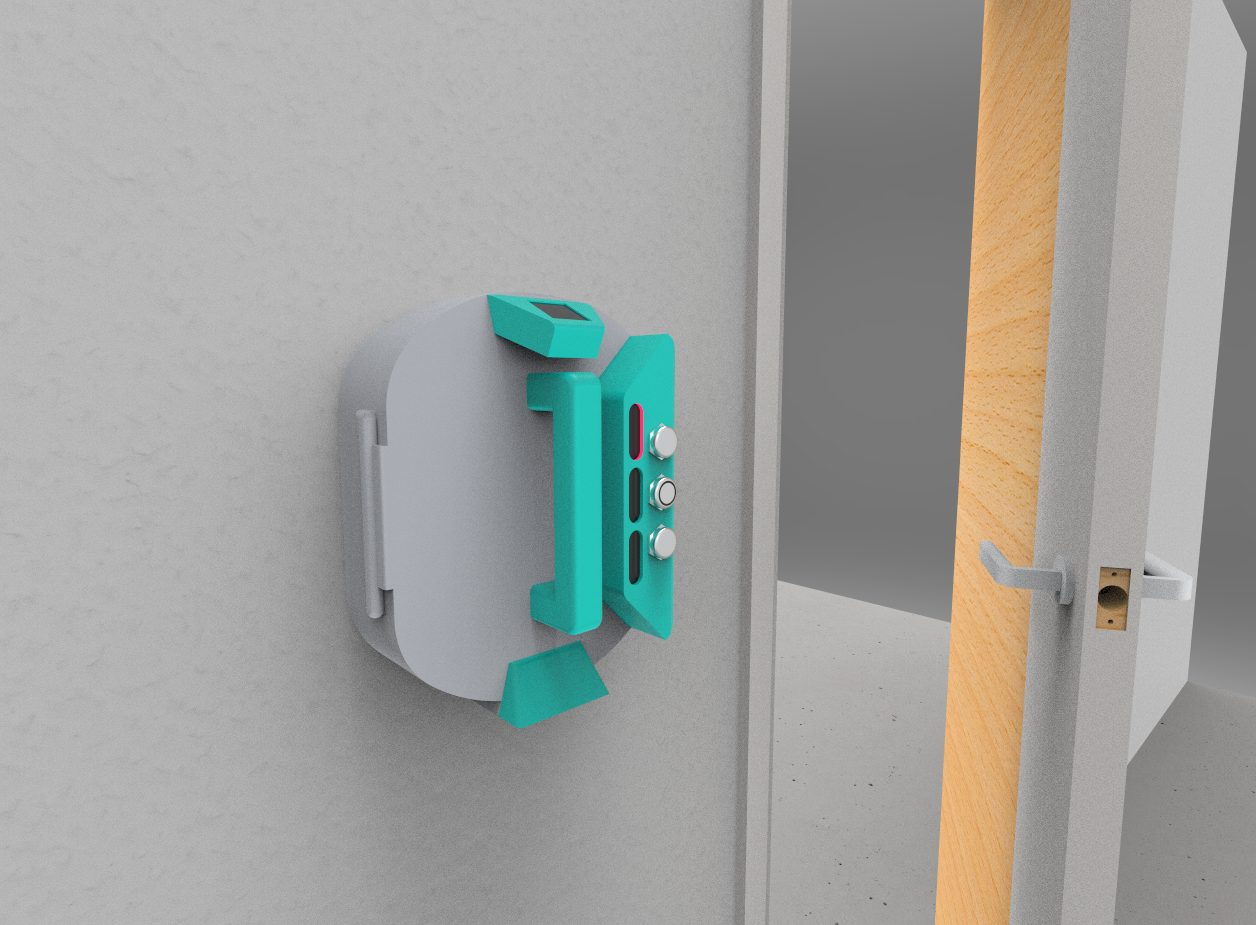

Context shot

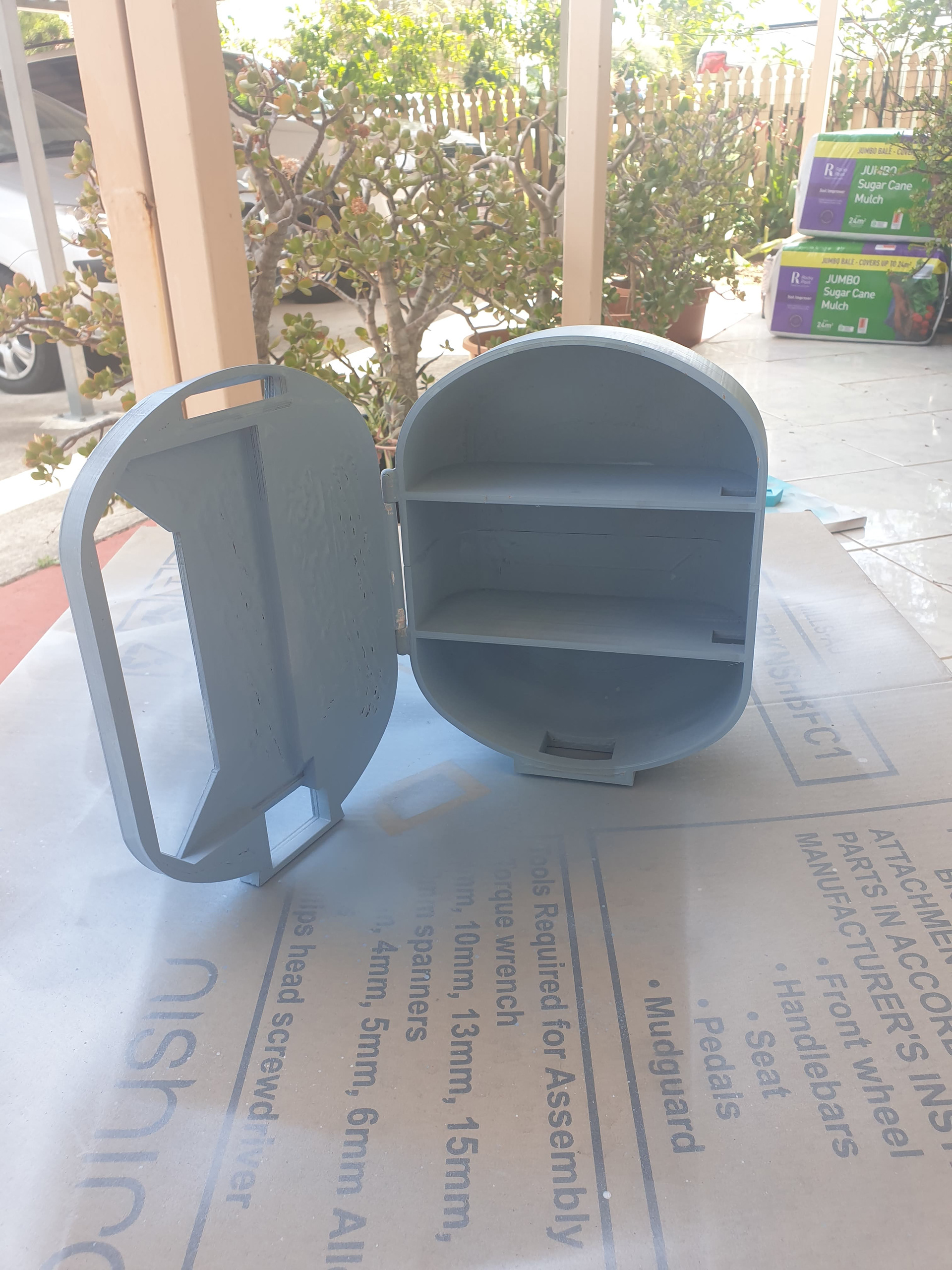

Spray painting

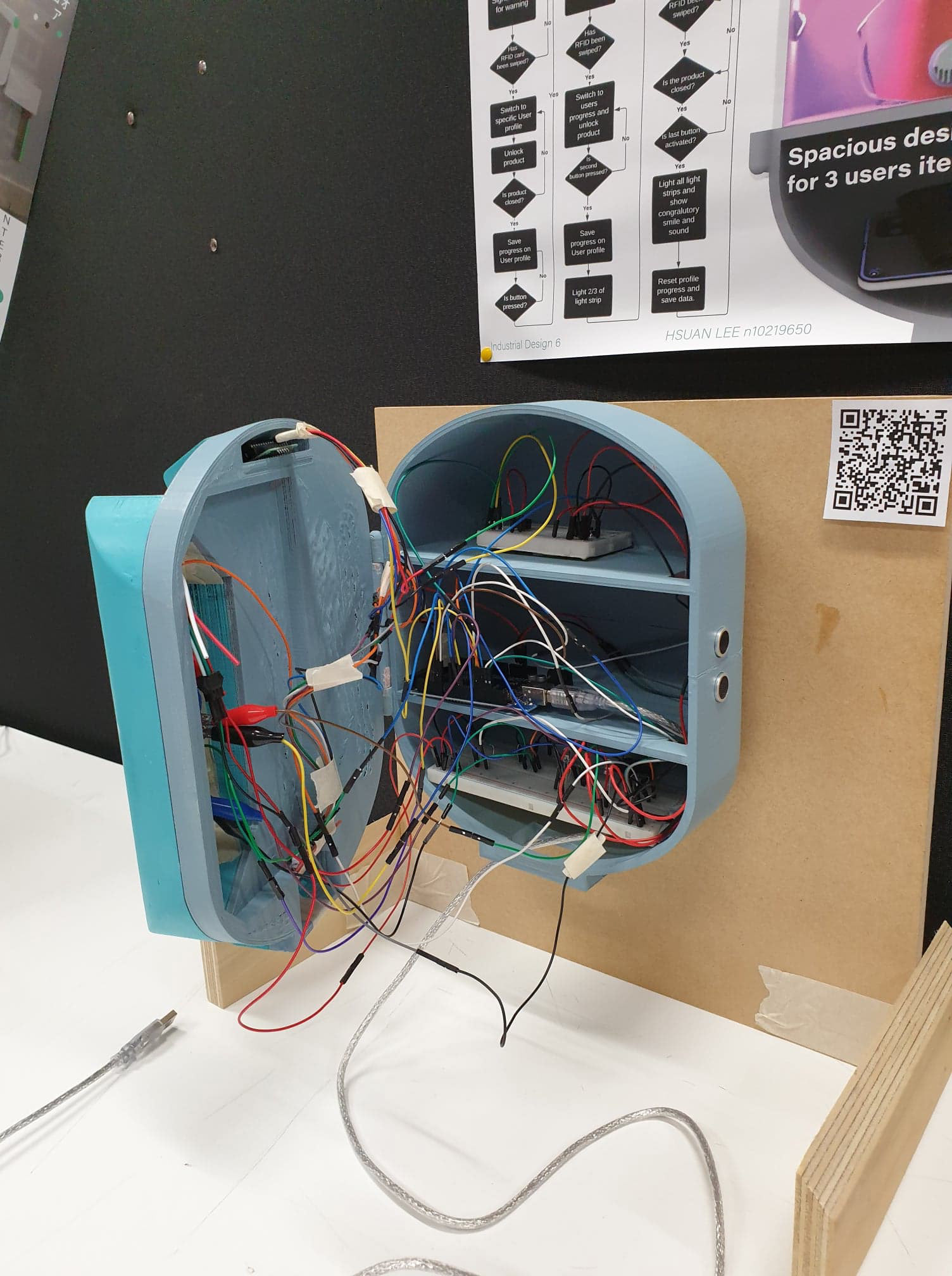

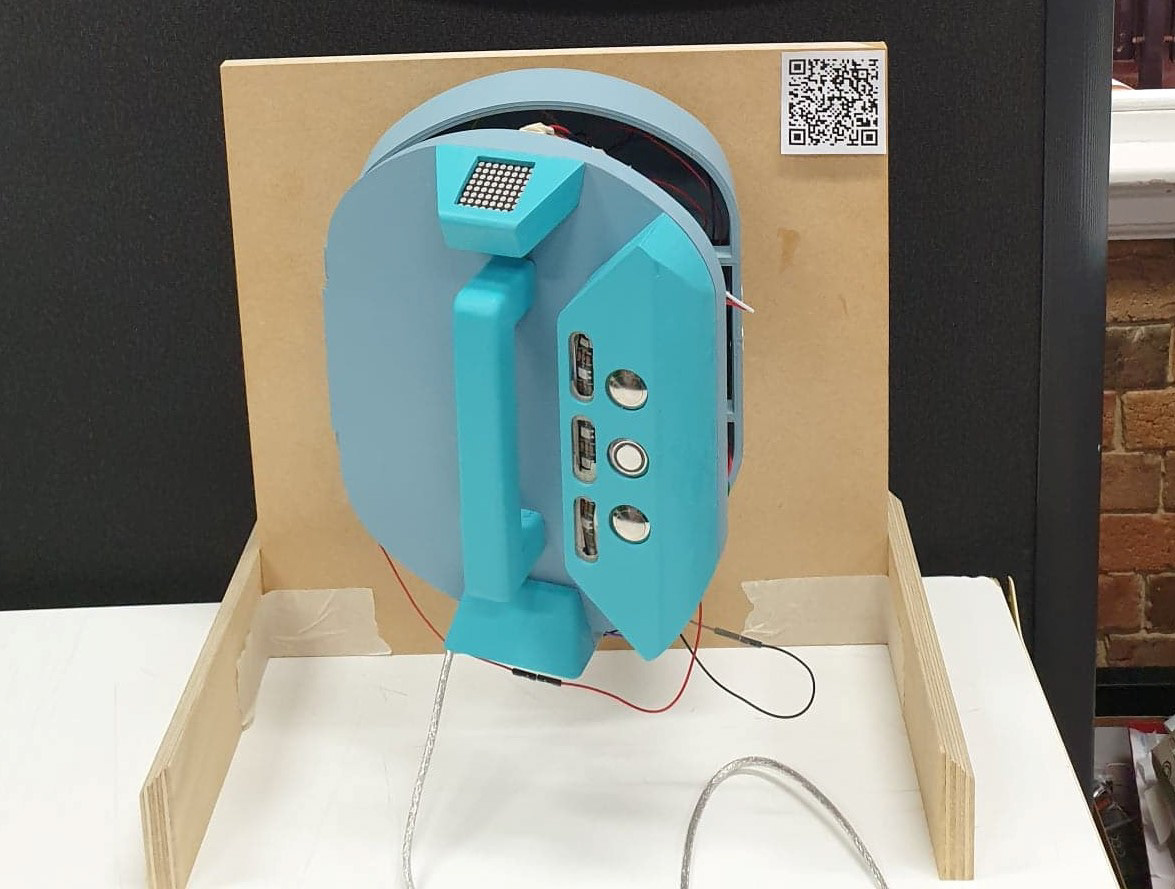

Final working model
Arduino coding and prototyping

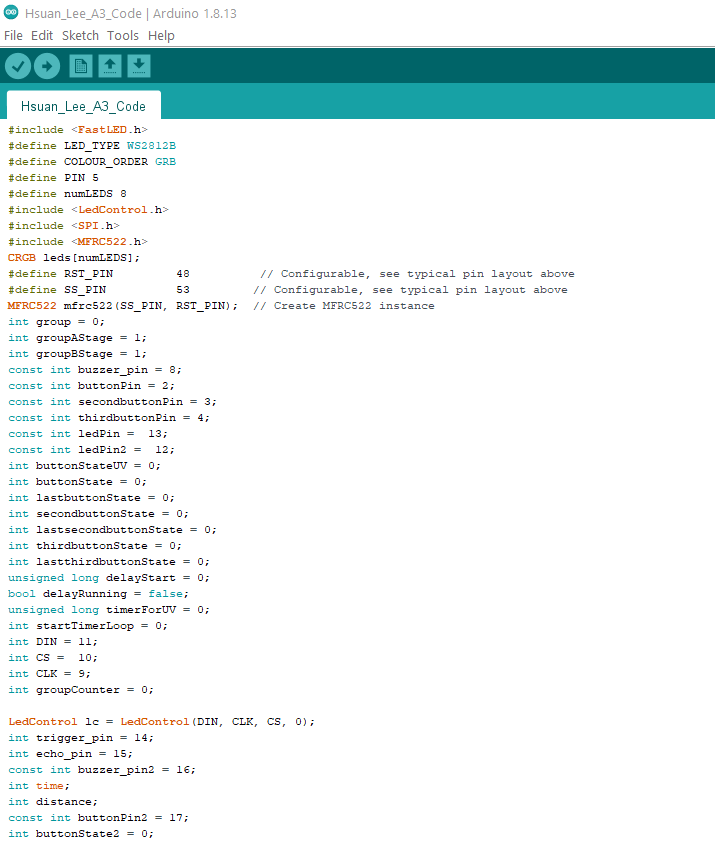

Arduino coding

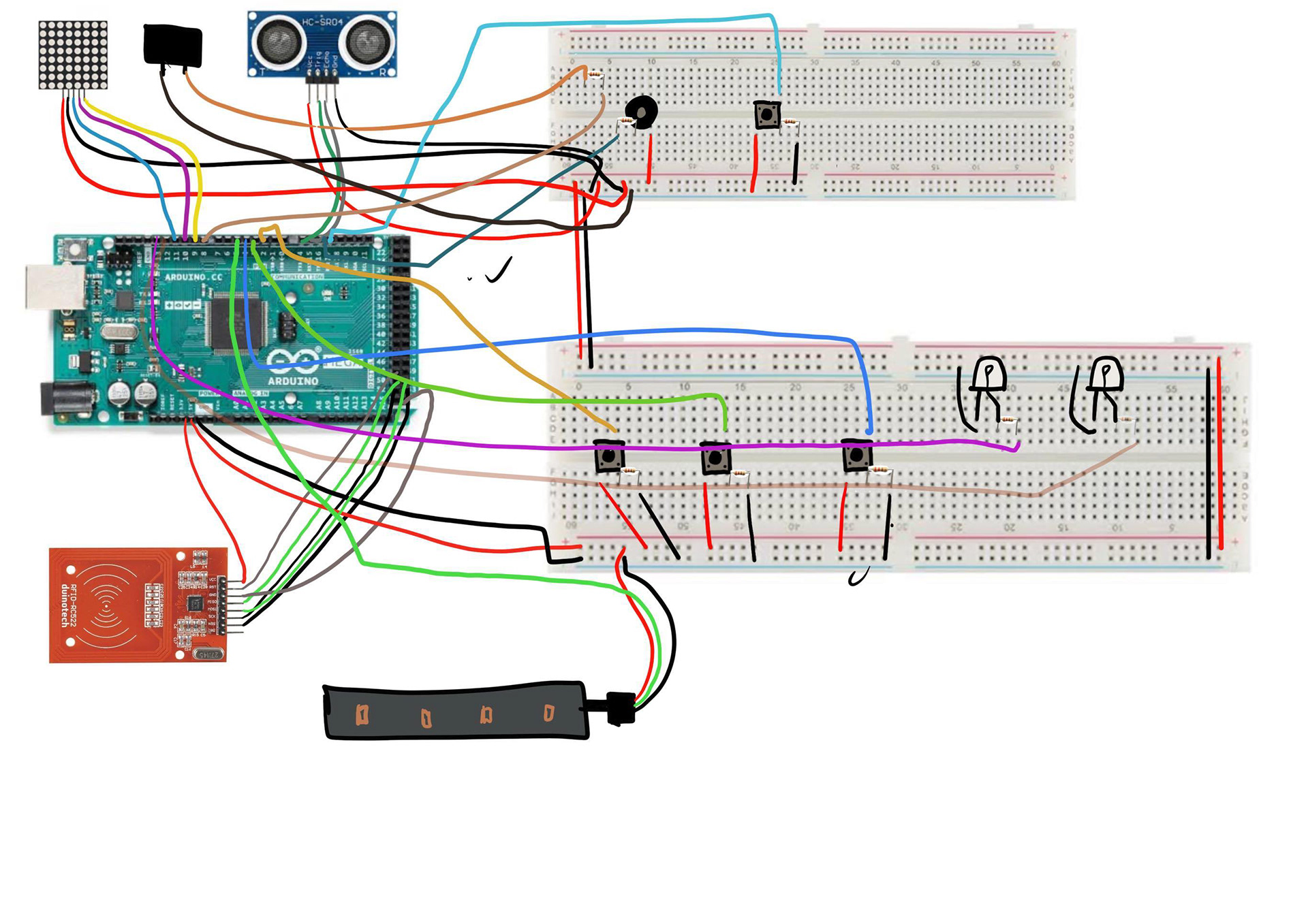

Arduino visualisation

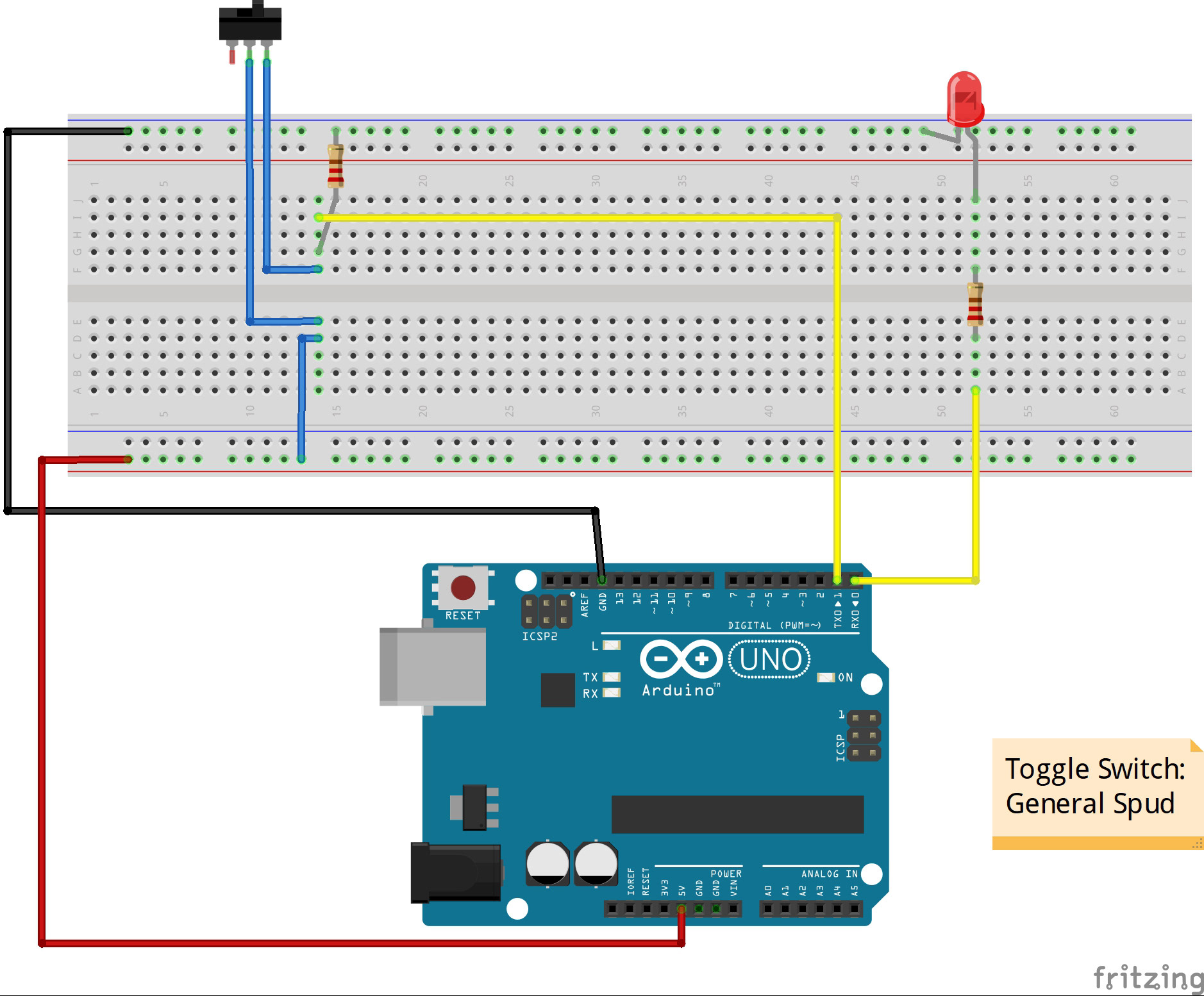

Prototype on Tinkercad

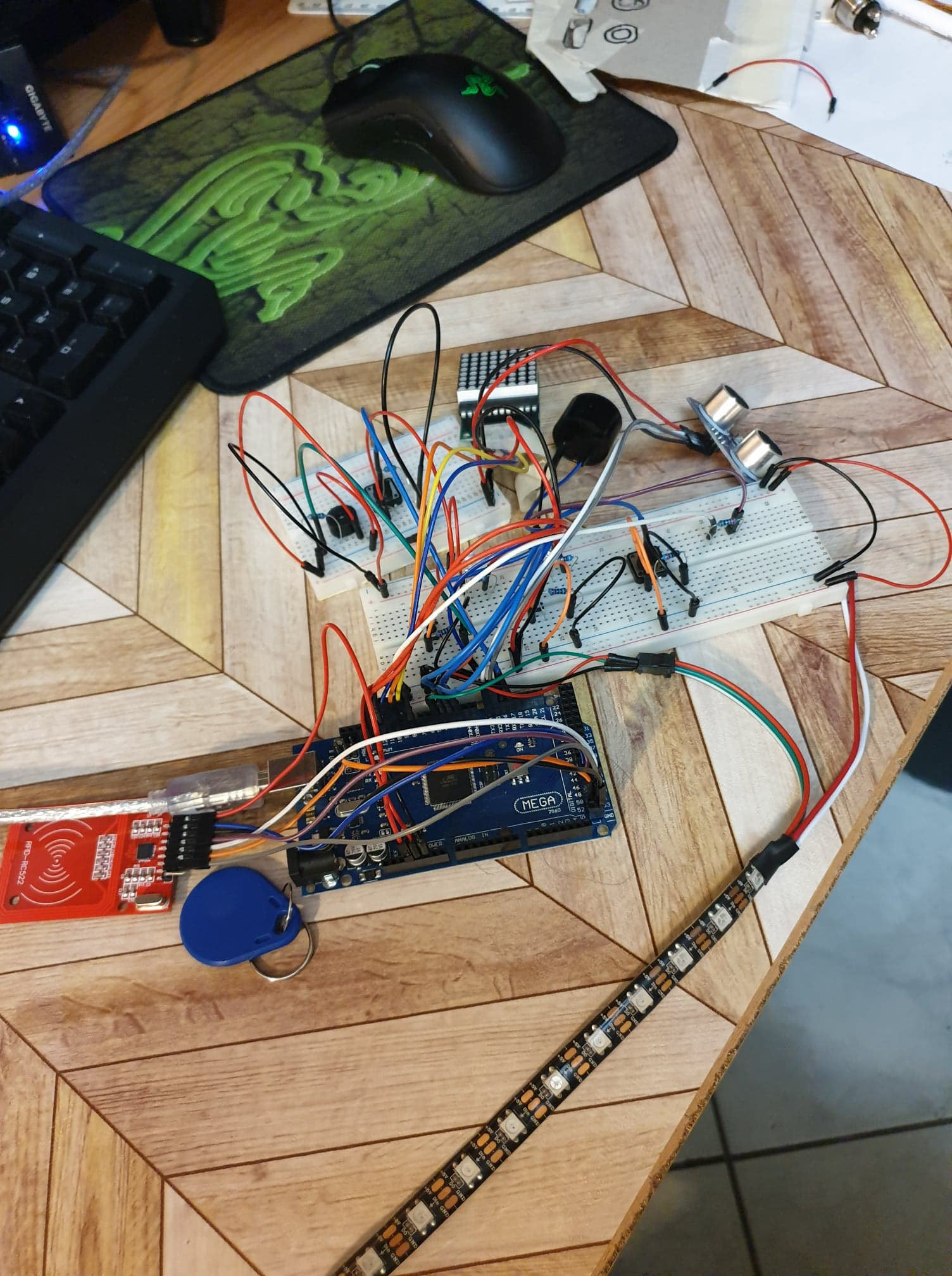

Arduino testing
